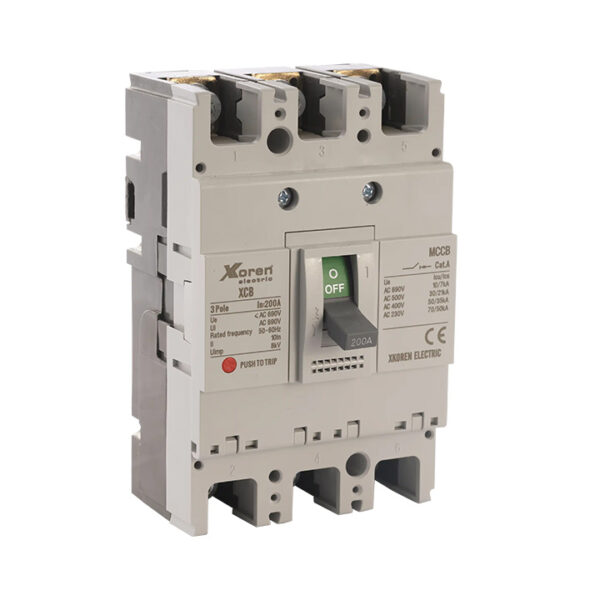

XCB Thermal Magnetic Molded Case Circuit Breakers are protection devices that interrupt the circuit under overload and short circuit conditions with their thermal and magnetic tripping mechanisms. X Koren Electric XCB Thermal Magnetic Molded Case Circuit Breakers have many certificates such as TSE, TÜV Nord, Domestic Goods, EAC and CE and are produced in our country.

Technical Specifications :

Number of Poles : 3P, 4P
Short Circuit Breaking Capacity Icu : 25kA, 35kA, 50kA, 70kA, 80kA
Icu = Ics 75
Rated Current : up to 1600A
Rated Impulse Withstand Voltage : 8kV
FF (fixed) type, AF (adjustable) type
With limiter (current limiting) feature
Fireproof BMC body

Low voltage coil, trip coil, auxiliary contact, alarm contact, motor control mechanism, mechanical lock, rotating crown with extension, phase curtain accessories.
