Capacitors are circuit elements that can store electric charge and release this charge when needed. They are used in many different tasks in electrical circuits, such as energy storage, voltage rectification and signal filtering. X Koren Electric capacitors are available in 4 types: power, motor, fan and air conditioning capacitors.

Technical specifications:

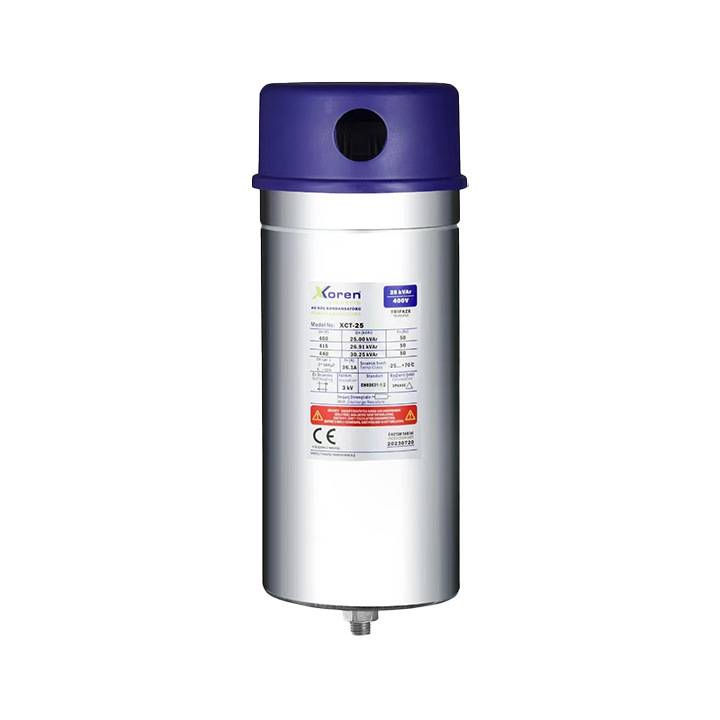

XCM/ XCT – Power Capacitors:

• Operating Voltage: 230V – 440V

• Loss: < 0,0045 (50Hz)

• Operating Temperature: -25°C .. +65°C

• Standard: IEC 60831-1-2

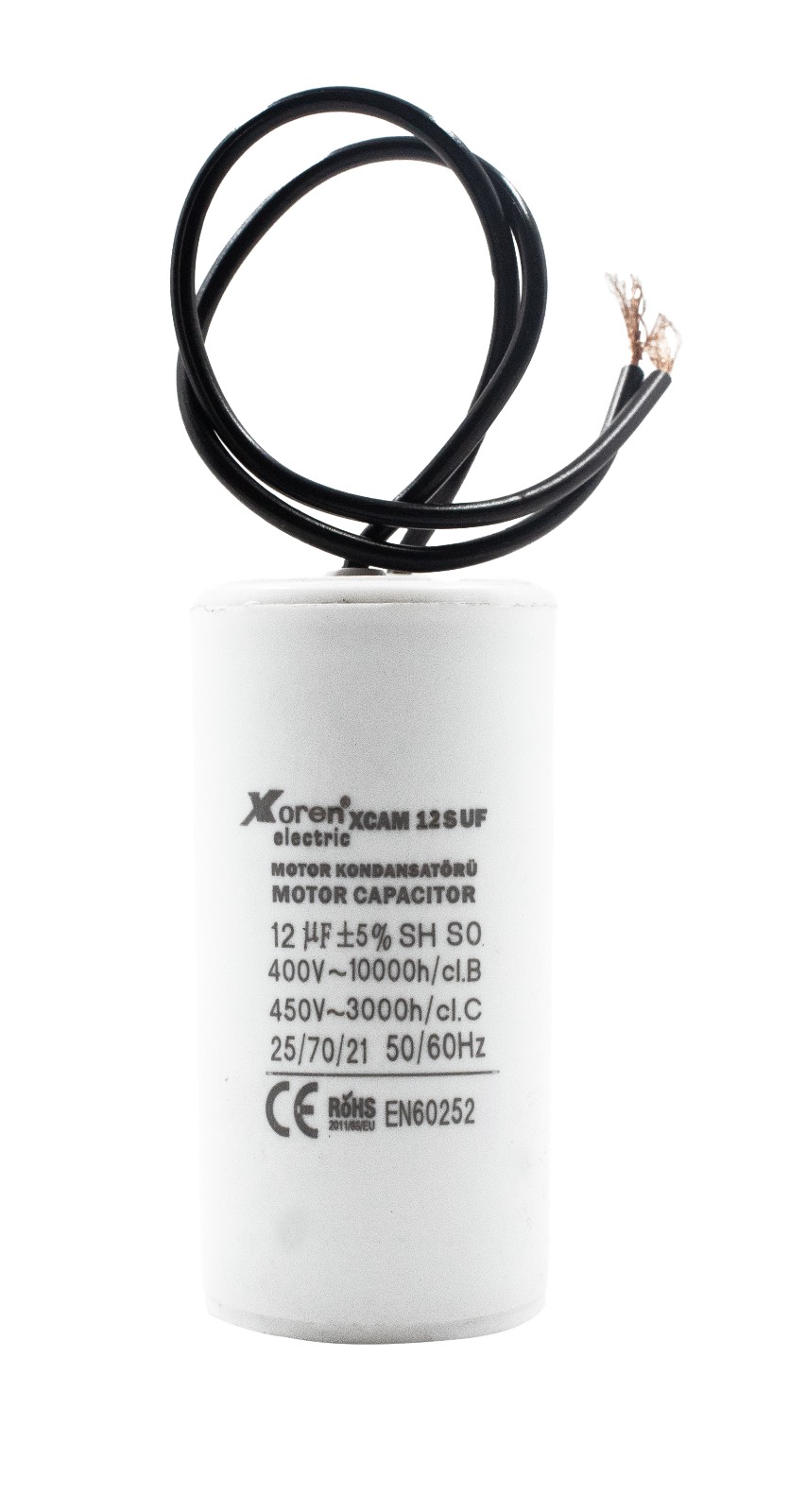

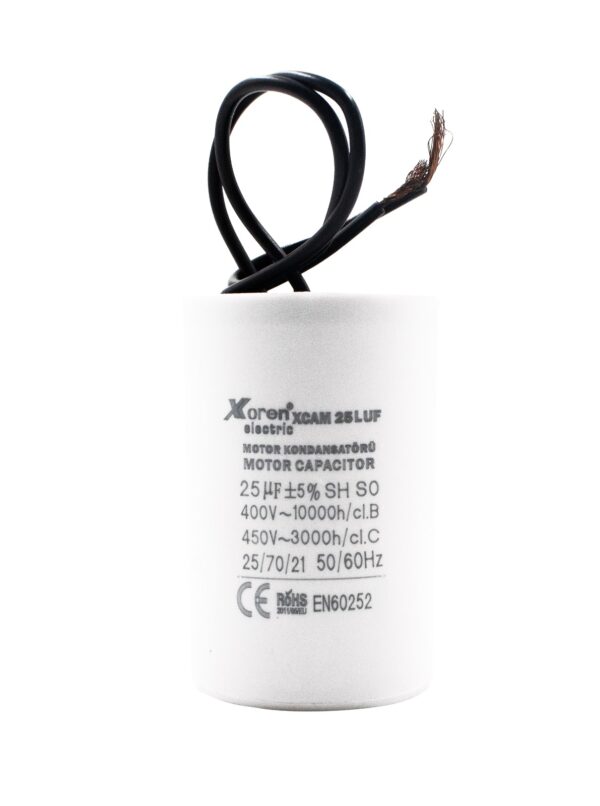

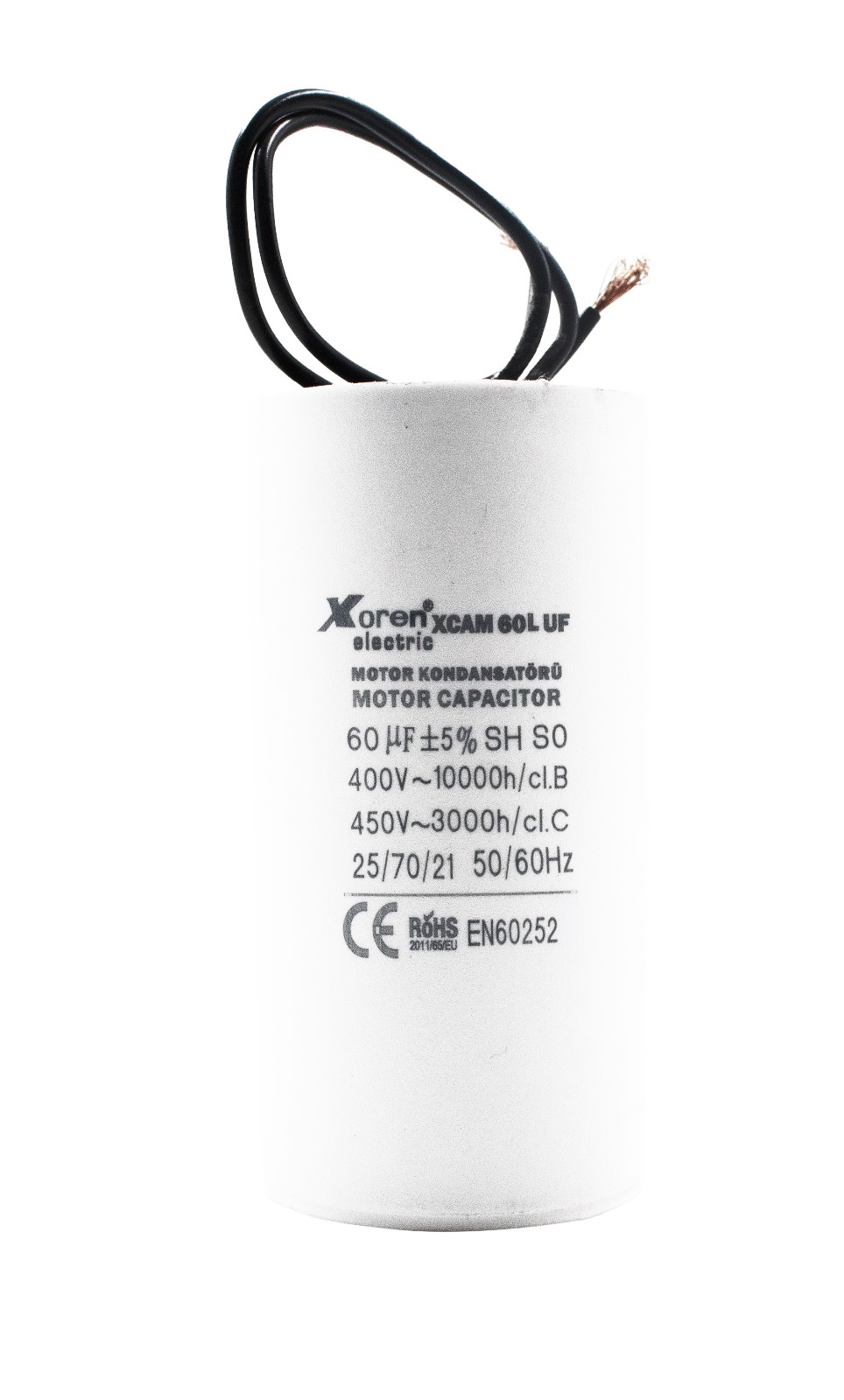

XCAM – Motor Capacitors:

• Operating Voltage: 400V – 450V

• Loss: < 0,002 (50Hz)

• Operating Temperature: -25°C .. +85°C

• Standard: IEC 60252-1

XCF – Fan Capacitors:

• Operating Voltage: 450V

• Loss: < 0,002 (50Hz)

• Operating Temperature: -25°C .. +85°C

• Standard: IEC 60252-1

XCK – Air Conditioner Capacitors:

• Operating Voltage: 400V

• Loss: < 0,006 (50Hz)

• Operating Temperature: -25°C .. +80°C

• Standard: IEC 60252-1
